STANLEY PLANE PARTS

Back To Home Page Back To Features Index

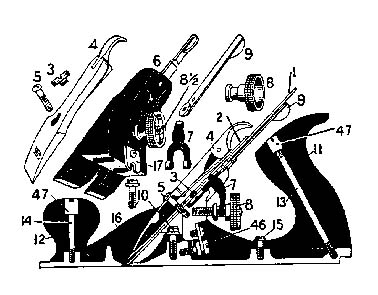

Bench Planes

   1 Cutter
   2 Plane Iron Cap
   3 Cap Screw
   4 Lever
   5 Lever Screw
   6 Frog Complete
   7 "Y" Adjusting Lever
   8 Adjusting Nut
   8 1/2 Cutter Adjusting Screw
   10 Frog Screw
   11 Rosewood Plane Handle
   12 Rosewood Plane Knob
   13 Handle Bolt and Nut
   14 Knob Bolt and Nut
   15 Handle Toe Screw
   16 Plane Bottom
   17 Frog Clip and Screw
   46 Frog Adjusting Screw
   47 Nut for Handle and Knob Bolts

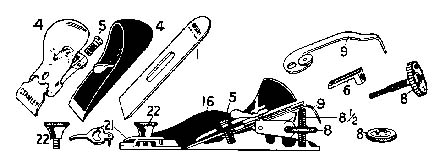

Block Planes

   1 Cutter
   4 Lever
   5 Lever Screw
   6 Adjusting Slide or Frog
   7 Adjusting Lever
   8 Adjusting Nut
   8 1/2 Adjusting Nut Screw
   9 Lateral Adjusting Lever
   16 Plane Bottom
   21 Eccentric Plate
   22 Finger Rest Knob

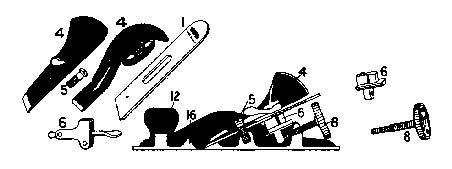

   1 Cutter
   4 Lever
   5 Lever Screw
   6 Adjusting Slide or Frog
   8 Adjusting Screw
   12 Plane Knob
   16 Plane Bottom
