Stanley No. 45 and No. 55 Combination Planes
Back To Home Page
Back To Features Index

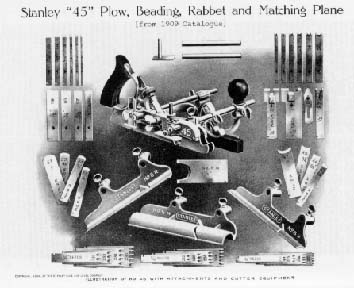

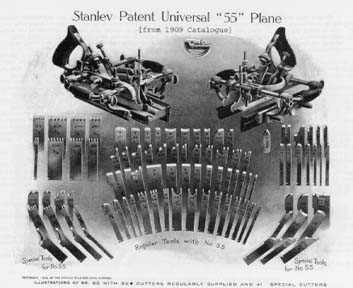

At first glance the No. 45 and No. 55 may appear to be the
same. A closer look will show that the No. 55 has a lot more
parts. It has two fences, both right and left hand. The No. 45
has only one. The center sliding section has extra screws so
that it can be adjusted up and down, and has a tower-like attachment
at the front which functions as an additional skate that can also
be adjusted. This feature of three skates, or bearing surfaces
that move in relation to each other is the core of the difference
between the two planes.
Cutters

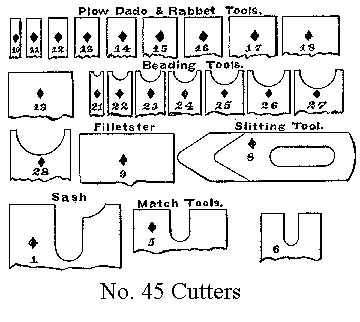

The No. 45 has cutters that have profiles
that are horizontally symmetrical on each side. Plow, bead, match

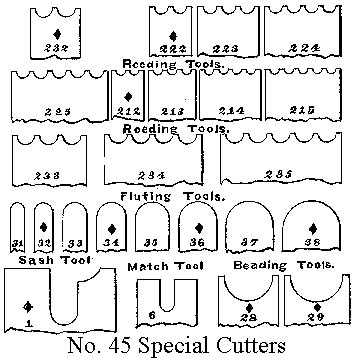

and sash cutters come with the plane. There are special cutters for the No. 45
... reeding, fluting, large bead, extra sash and match, that could
be purchased separately. The No. 55 can cut
the same profiles as the No. 45, and also make complex profiles
because the two sides can conform to different shapes and the
center auxiliary bottom provides support to the center of the
cutter. Special cutters for the No.. 55
were generally larger and smaller cuts of the profiles that came
with the plane. (These are not marked with a diamond in the illustration)
The No. 55 came with hollow and round cutters. The No. 45
had a set of four hollow and round soles, and a nosing attachment
( see illustration above ) that could be ordered for the plane
There are some exceptions to this breakdown of the cutters,
based on the vintage of the plane. The No. 45 went from 18 to
22 cutters, adding the large beads and small match cutters over
time. The set of No. 55 cutters basically stayed the same except
for the later addition of a left and right hand chamfer cutter.
Fences
The No. 45 came with one fence. In 1895 a rosewood wear strip
was added. In 1915, a Microdial screw was added for fine adjustment.
The No. 55 came with both a right and left hand fence. Since
they were first made around 1895, the rosewood wear strip was
probably designed for the No. 55. As far as I know, the No. 55
always had the Microdial adjustment. On the No. 55, the rosewood
strips rotate to facilitate making angle cuts.
Notes
The fences on the No. 45 and 55 planes are not interchangeable.
The rods on the two planes are different distances apart. For
this reason, the No. 45 hollow and round bottoms will not fit
on the No. 55. The hollow and round attachments work better than
the cutters on the No. 55, because they have a sole and a throat,
but the No. 55 will do the job if set properly and a fine cut
is taken.
Small accessories, such as the screws, cam, rods, and rear
depth stop are interchangeable between the planes.
I have used,and have seen the No. 55 being used successfully.
Some people ( the wooden plane guys ) maintain that the No. 45
is a good tool, but the No. 55 is worthless compared to a wooden
plane ... the problem being tearout of the wood being planed.
I feel that care used in sharpening the cutter, setting up the
tool, and choice of wood to plane can lead to a successful job.
